Legend (LBS) Building Profiles


Click on a profile for a version that will print-out at A4 size.

(back browser icon to return)


All Legend buildings can be ground or wall mounted.
12' = 3.6m
16' = 4.9m
30' = 9.1m

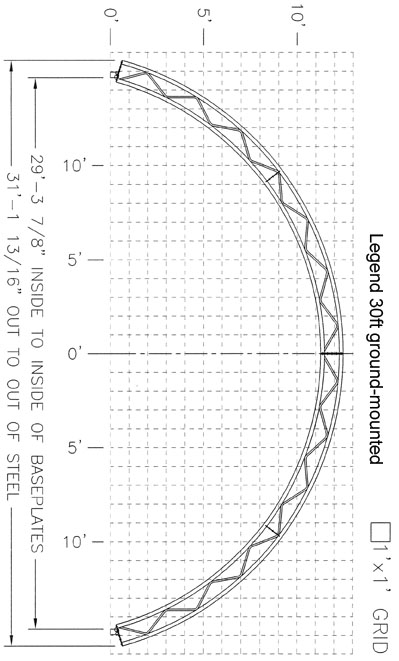

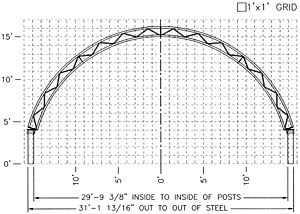

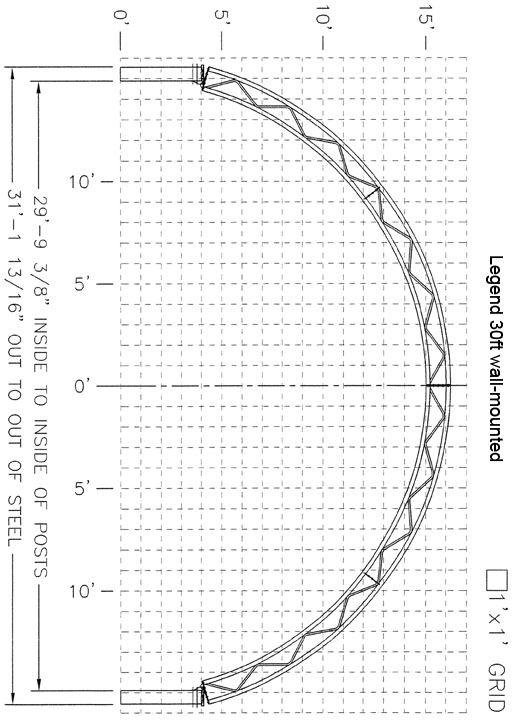

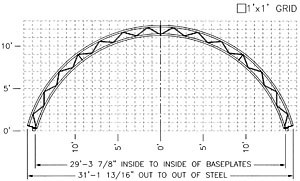

30ft ground-mounted   30ft wall-mounted

19' = 5.8m
23' = 7.0m
32' = 9.8m

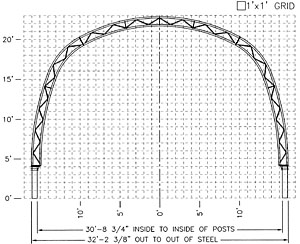

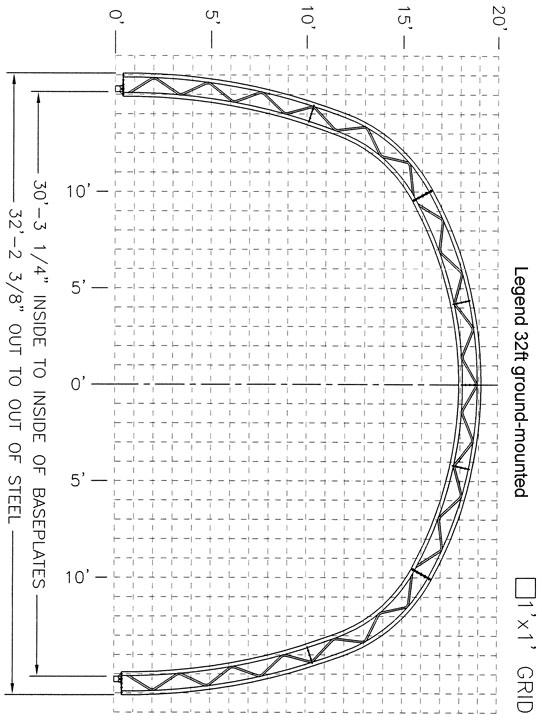

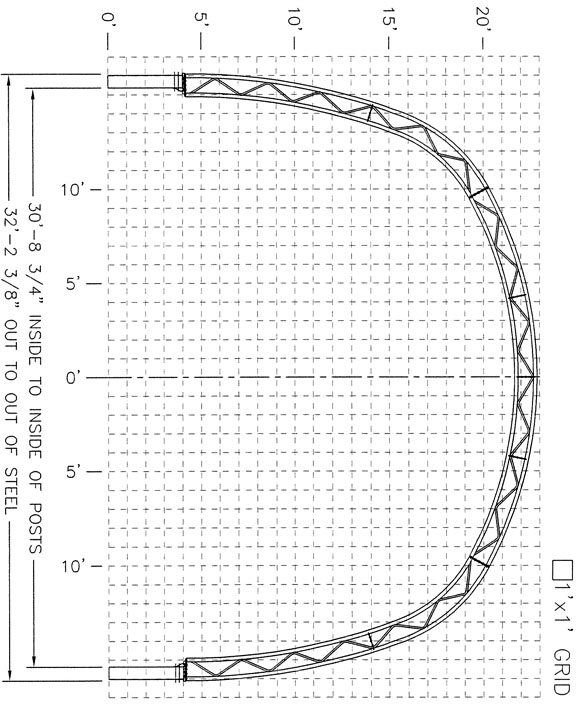

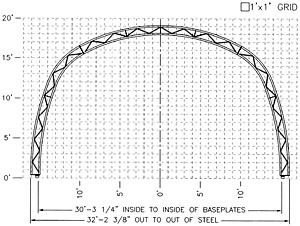

32ft ground-mounted   32ft wall-mounted

19' = 5.8m
23' = 7.0m
36' = 11m

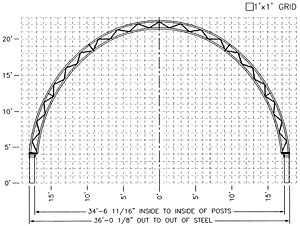

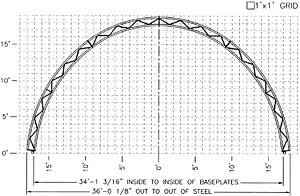

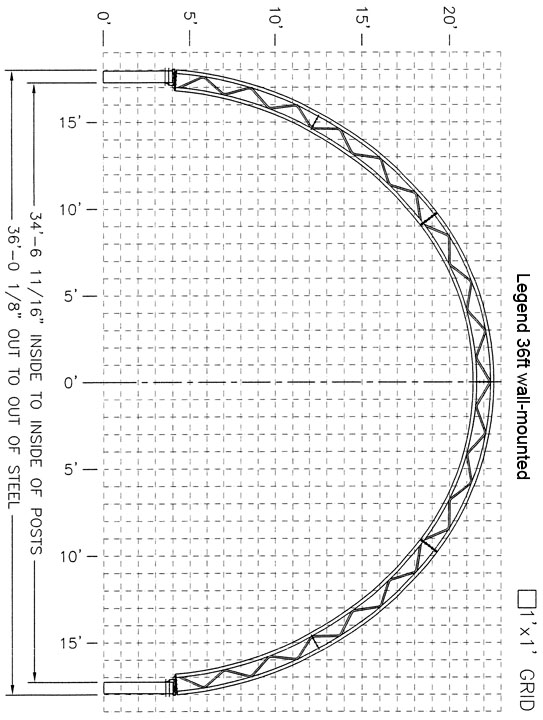

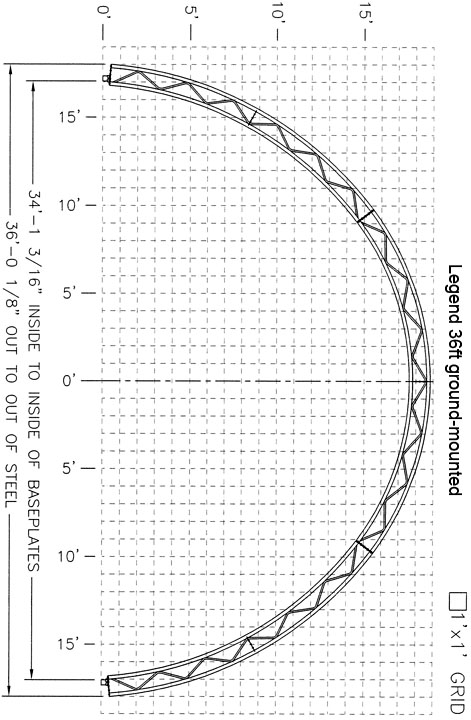

36ft ground-mounted   36ft wall-mounted

15' = 4.6m
19' = 5.8m
40' = 12.2m

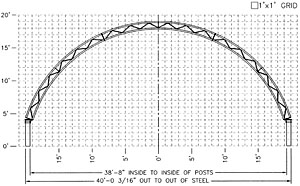

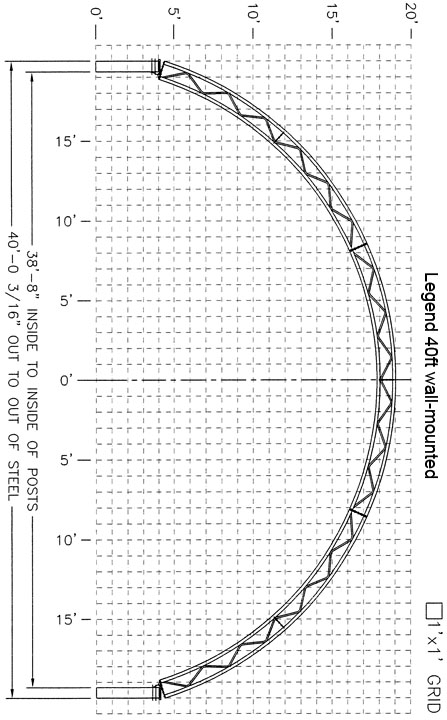

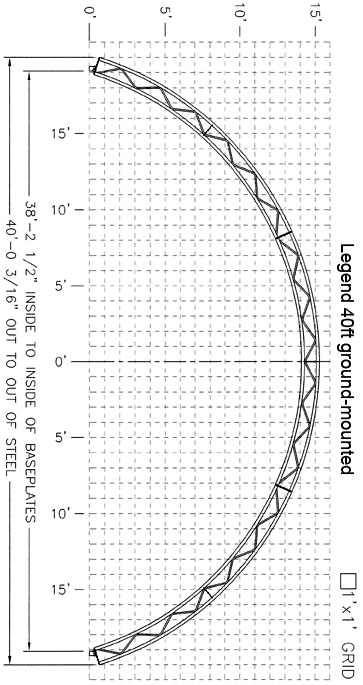

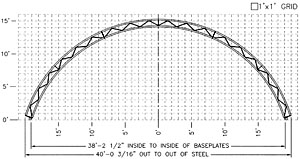

40ft ground-mounted   40ft wall-mounted

20' = 6.1m
24' = 7.3m
42' = 12.8m

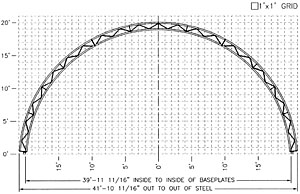

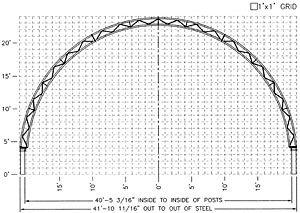

42ft ground-mounted   42ft wall-mounted

17' = 5.2m
21' = 6.4m
50' = 15.2m

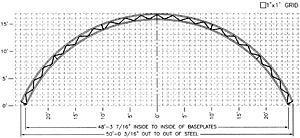

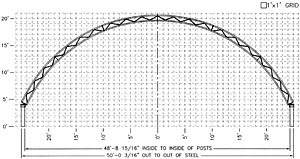

50ft ground-mounted   50ft wall-mounted

24' = 7.3m
28' = 8.5m
55' = 16.8m
62' = 18.9m

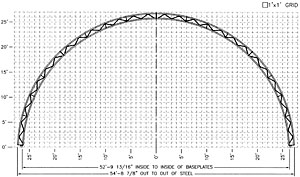

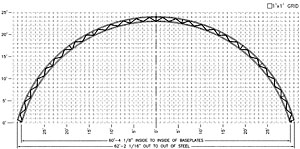

55ft ground-mounted   62ft ground-mounted

28' = 8.5m
29' = 8.8m
62' = 18.9m
65' = 19.8m

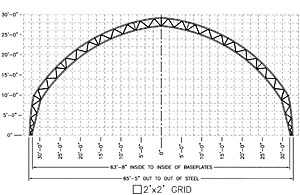

62ft wall-mounted   65ft ground-mounted

20' = 6.1m
30' = 9.1m
70' = 21.3m
72' = 22.0m

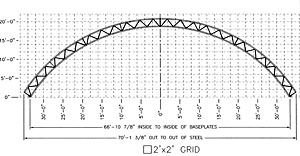

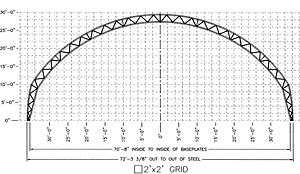

70ft ground-mounted   72ft ground-mounted
